Wisconsin requires registration numbers in block characters at least 3 inches high, with letters separated from numerals by a space of at least 2 inches, displayed on both sides of the forward half of the hull. Two color-coded expiration decals must sit exactly 3 inches aft of those numbers on each side. The Wisconsin DNR governs all of this under administrative code NR 5.06, and registration runs on a 3-year cycle from April 1 through March 31 of the third year. If your numbers are faded, peeling, or the wrong size, replace them before you launch. Registrationdecals makes marine-grade, UV-resistant, saltwater-proof decals sized to Wisconsin specs, with production in 3–5 business days and free shipping in the contiguous U.S.
Wisconsin compliance in one line: 3" block characters, 2" letter-numeral gap, decals 3" aft, certificate on board.
Table of Contents
- What are the exact Wisconsin boat registration number requirements?
- Where exactly do the numbers and decals go on your hull?
- What font style and color choices keep your decals compliant?
- How to apply your decals and keep them readable for years
- What documents do you need on board, and when does registration expire?
- Key Takeaways
- Why the material choice matters more than most owners realize
- Order Wisconsin-compliant registration decals from Registrationdecals
- Useful sources
What are the exact Wisconsin boat registration number requirements?
Wisconsin's rules are specific, and enforcement officers know exactly what to look for. Here's every measurement and timing rule in one place.
Display rules:
- Characters must be block style, at least 3 inches tall, and must contrast with the hull color (dark on light or light on dark)
- Numbers must appear on both sides of the forward half of the hull
- They must read left to right
- Letters must be separated from numerals by a space of at least 2 inches
- Two-toned or camouflage lettering is explicitly prohibited
Decal placement:
- Two color-coded expiration decals must be placed 3 inches aft of the registration numbers on each side
Registration timing:
- Registration is valid for a three-year cycle running from April 1 through March 31 of the third year
- A printed temporary operating receipt allows legal operation for a limited period while you wait for physical materials
| Requirement | Spec |
|---|---|
| Minimum character height | 3 inches |
| Letter-to-numeral gap | At least 2 inches |
| Decal position | 3 inches aft of numbers, both sides |
| Registration period | 3 years (April 1 – March 31) |
Enforcement note: Faded or peeling numbers are among the most commonly cited violations on Wisconsin waterways. UV degradation is the primary cause.
Where exactly do the numbers and decals go on your hull?
"Forward half" means the front 50% of the boat's length, measured from bow to stern. Place numbers on both port and starboard sides within that zone, high enough to be visible from the water. They must read left to right from the perspective of someone looking at that side of the boat.
For the expiration decals, measure from the trailing edge of the last character in your registration number, then go 3 inches toward the stern. That's where the leading edge of each decal belongs. Do it on both sides.
Contrast matters more than people expect. Against a white gelcoat hull, black or dark blue characters are obvious. Against a dark hull, white or yellow works. The rule gets tricky on multi-colored or patterned hulls. In that case, pick a single solid decal color that guarantees contrast across the entire hull section, rather than trying to match hull accents. Don't use two-toned or camouflage fills under any circumstances — NR 5.06 prohibits them explicitly.
Bow flares and chines can make flat placement difficult. On a pronounced bow flare, position numbers on the flattest visible surface so they don't curve away from view. On a deep-V hull with a sharp chine, stay above the chine line. For cockpit coamings on center-console boats, the side of the hull forward of the console is usually the cleanest surface.

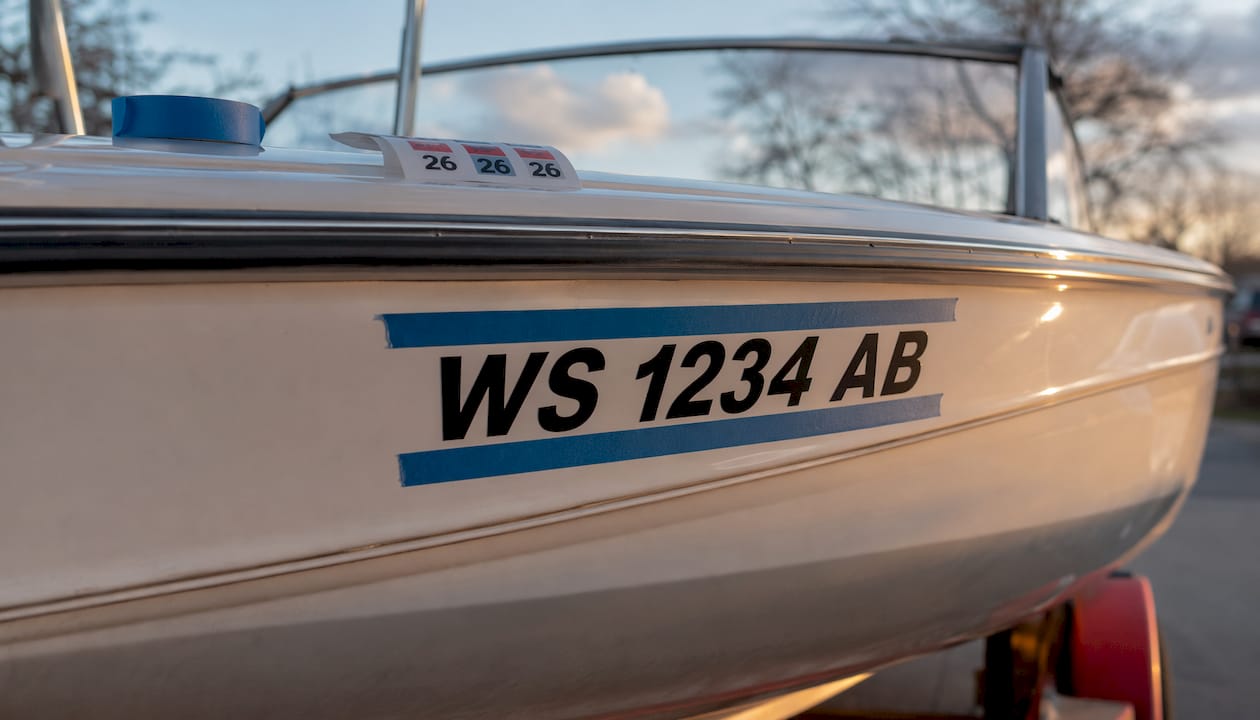

Pro Tip: Before peeling the backing off your decals, tape them in position with painter's tape and step back to check visibility from 50 feet. Photograph the mock-up with a tape measure visible. That photo is useful evidence if an officer later questions sizing or spacing.
What font style and color choices keep your decals compliant?
Wisconsin's administrative code calls for "block characters of good proportion." That phrase rules out script fonts, italic styles, and anything decorative. Stick to clean, upright block fonts — think Arial Bold, Impact, or similar sans-serif styles. The characters need to be legible at a distance, not stylish.
From NR 5.06: Registration numbers must be in block characters of good proportion, at least 3 inches in height, and of a color that contrasts with the color of the background.
The 2-inch gap between the letter block and the numeral block is where single-strip decals can create compliance problems. If the gap isn't visually obvious, an officer may flag it. Individual character sets or designs with a clear physical break between the letter group and number group are safer than a single continuous strip where the spacing is implied by background color alone.
Wisconsin registration numbers follow the pattern WS 9999 AB — the state prefix "WS," four numerals, then two letters. The letters I, O, and Q are excluded from the sequence to prevent confusion with the numerals 1, 0, and 0. When entering your registration string for a custom order, use exactly what appears on your certificate, including the WS prefix and the spacing.
Design-input checklist for ordering:
- Enter the full string exactly: e.g., WS 1234 AB
- Choose a color that contrasts with your hull (not a two-tone or pattern)
- Select a block-style font
- Confirm the design shows a visible 2-inch gap between letters and numerals
How to apply your decals and keep them readable for years
Good application takes 20 minutes and saves you a re-order. Rushing it costs more in the long run.

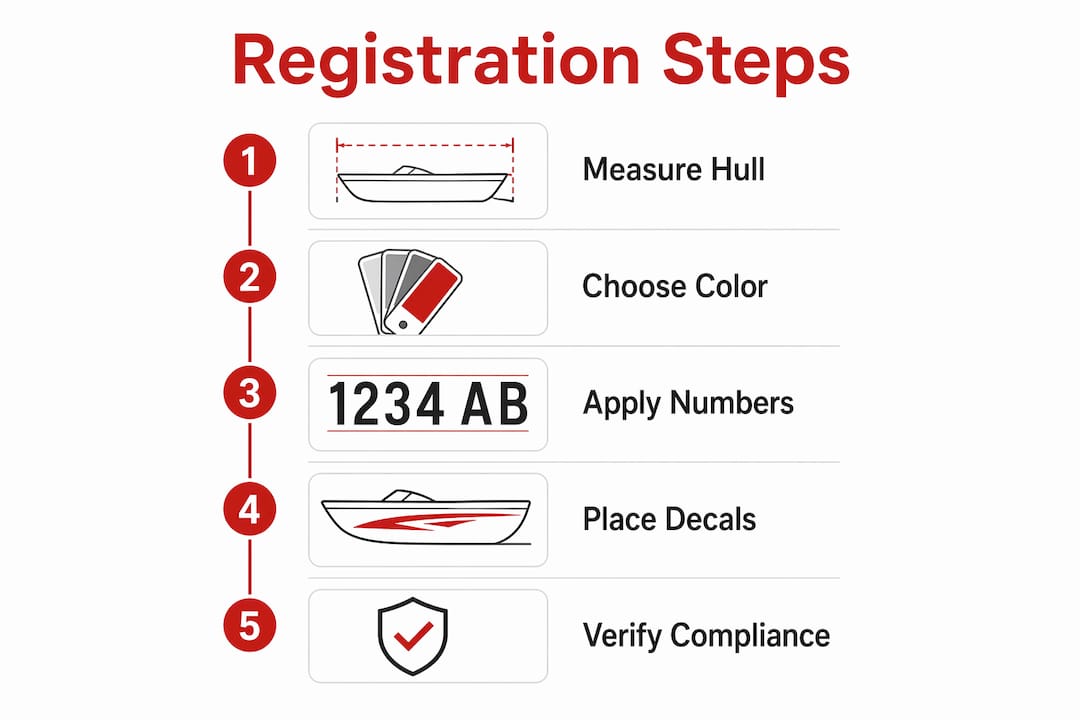

Application steps:
- Clean the hull surface with isopropyl alcohol and let it dry completely. Any wax, oil, or residue will cause lifting edges within weeks.
- Measure and mark your placement with a pencil or chalk line before removing the backing.
- Peel the backing halfway, align the decal, then press from center outward to push air out.
- Use a squeegee or credit card to smooth the full surface, working from the middle toward each edge.
- Allow 24 hours before the hull contacts water. Cold temperatures slow adhesive curing — if it's below 50°F, wait longer.
Troubleshooting common problems:
- Bubbles: Small ones often work out on their own within a week. For larger bubbles, use a pin to make a tiny hole and press flat.
- Lifting edges: Usually caused by surface contamination or cold application. Clean, press firmly, and apply a small amount of marine-grade adhesive if needed.
- Color fading: UV degradation is the main culprit. Marine-grade vinyl with UV inhibitors resists this significantly longer than standard vinyl. When fading makes characters hard to read, replace the set — don't wait for a citation.
Pro Tip: Run two strips of masking tape as guide rails above and below your intended number line before applying. They keep the decal perfectly level without guesswork, and you can peel them off cleanly after.
What documents do you need on board, and when does registration expire?
Display and documentation are two separate legal obligations. The decals on your hull satisfy the display requirement. The certificate of registration — a small wallet-sized card — must be carried by the operator and available for inspection every time the boat is on the water.
Wisconsin law requires operators to carry the certificate of registration onboard at all times; the temporary operating receipt serves the same function for a limited time after registration while physical materials are in transit.
Registration runs on a three-year cycle from April 1 through March 31 of the third year. The two color-coded expiration decals issued with each registration cycle provide enforcement officers a clear indication of expiration. Keep both on the hull in the correct position.
If you buy a boat privately, lien release documents must identify the vessel by hull identification number or Wisconsin registration number before the title transfers cleanly. Don't skip this step — a lien that isn't cleared to the specific hull creates title problems that can follow the boat for years.
Practical timeline: After submitting your registration, the temporary operating receipt covers you legally for a limited period while awaiting your official registration materials. If physical decals haven't arrived by day 55, contact the DNR directly.
Key Takeaways
Wisconsin boat registration numbers must meet exact DNR specifications — 3-inch block characters, a 2-inch letter-numeral gap, and expiration decals placed 3 inches aft — and marine-grade vinyl decals from Registrationdecals ship in 3–5 business days.
| Point | Details |
|---|---|
| Minimum character height | Block characters must be at least 3 inches tall on both sides of the forward hull. |
| Letter-numeral spacing | Leave at least 2 inches between the letter group and numeral group — make the gap visually obvious. |
| Decal placement | Expiration decals go exactly 3 inches aft of the registration numbers on each side. |
| Carry your certificate | The registration card must be on board every time you operate; the temporary receipt covers up to 60 days. |
| Order from Registrationdecals | Marine-grade, UV-resistant decals sized to Wisconsin specs, produced in 3–5 business days with free shipping. |
Why the material choice matters more than most owners realize
Most compliance conversations focus on measurements, and that's fair — get the size wrong and you'll get cited. But the material question is where owners quietly lose money. A set of standard vinyl decals might look fine at launch and be illegible by the following summer. UV exposure on open water is brutal, and Wisconsin's lake seasons run long.
Marine-grade vinyl with UV inhibitors and saltwater-proof adhesive isn't a premium upgrade. It's the minimum that makes sense for a boat that spends real time on the water. The cost difference between standard and marine-grade is small. The difference in lifespan is not.
There's also a practical safety dimension that rarely gets mentioned. When a vessel needs to be identified quickly during an emergency, readable registration numbers on both sides of the hull are what responders use. Faded numbers slow that process. Following NR 5.06 isn't just about avoiding a fine — it's about making sure your boat can be identified when it matters.
Registrationdecals builds state-specific guides, an online design tool, and a production process around exactly this: decals that are compliant on day one and still readable years later.
Order Wisconsin-compliant registration decals from Registrationdecals
Skip the guesswork on sizing and material. Registrationdecals produces custom Wisconsin registration decals in marine-grade, UV-resistant, saltwater-proof vinyl — cut to the exact character height and spacing Wisconsin DNR requires.
The online design tool walks you through it: select the Wisconsin state template, enter your registration string exactly as it appears on your certificate (e.g., WS 1234 AB), choose a high-contrast color for your hull, and confirm your font. The design takes minutes. Production runs 3–5 business days, with free shipping throughout the contiguous U.S. Marinas and dealerships can also place bulk orders for dealer accounts to keep compliant decals in stock for customers. Start your order at registrationdecals.com and have compliant numbers on the water before your next launch.
Useful sources
Verify current Wisconsin rules directly with these primary sources before ordering, especially if your registration is close to renewal.
- Wisconsin DNR — Before You Operate Your Boat: character height, contrast, and prohibited lettering styles
- Wisconsin DNR — Boat Registration General Information: decal placement, registration cycle, and lien release requirements
- Wisconsin DNR — Register Your Boat: temporary operating receipt rules and documentary requirements
- Wisconsin Administrative Code NR 5.06: the governing display rule for number placement, size, orientation, and contrast
- Wisconsin Administrative Code NR 5.05: the numbering pattern (WS 9999 AB) and excluded letters
- Wisconsin Statutes — Certificate/Registration Requirements: onboard documentation obligations
- Registrationdecals — Wisconsin Decal Requirements Guide: state-specific sizing, placement, and ordering guidance for compliant Wisconsin decals
